PROJECT ENGG ROAD AND RAIL TRANSPORT BUS FRAME JSC Neftekamsk Automobile

The computational model of the bus frame, JSC "Neftekamsk Automobile"

Photo bus, manufactured by the JSC "NefAZ"

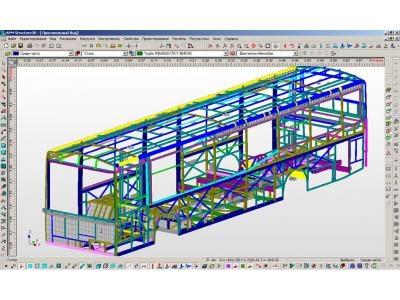

A general view of the design of the bus frame model
A general view of the design of the bus frame model
A general view of the design of the bus frame model
equivalent stress distribution map

From stress map analysis that the design has several weaknesses - is the site of attachment of springs and shock absorbers of the front wheels of the bus chassis to its frame. The attachment points are located in a plate and bending stresses predominate. The largest value of stresses in the fastening elements of the front wheel reaches 439 MPa and has a local (point) character.
The stresses in the rod and the remaining plate elements of the bus structure are at 70 - 105 MPa, which is quite permissible value for steelwork St3kp made of steel having a yield limit of 235 MPa.
Enlarged fragment design equivalent stress card with a maximum stress level, is shown on the illustration below.

displacement distribution map
The stress distribution in the springs and shock absorbers mounting the front wheels of the bus chassis
