The building is an indoor tennis court

Place of construction: Ul. Chobotovskaya

The building structure is a set of trusses, which are interconnected via a system runs. Bearing truss is pivotally mounted to the support columns.

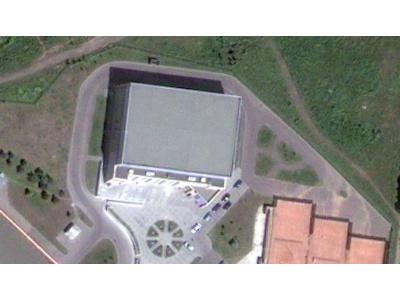

Kind of a building on satellite imagery

simulation design

General view of the calculation model of the building
A general view of the calculation model of a building (not shown conditionally coating)

The calculation results



According to the calculation of the end of the following results were obtained:

Equivalent stress distribution map
Deformation in the lower belt of the most heavily loaded farm
total displacement distribution map
Buckling

Summarizing the results, we can conclude that the design of the building is capable of carrying the load applied to it, corresponding to the construction area, and does not require additional measures to increase the strength characteristics.
