Slow lifting devices Moscow

"Podemmehmash" LLC is the developer and manufacturer of lifting equipment.

In accordance with the agreement between the SEC and APM "Podemmehmash" LLC were held strength calculations of structures of low-speed hoisting devices (TSU), such as:

1) Single Column cantilevered two types of duty;

2) a two cantilever;

3) The three types of pit duty.

Computational models of all types have been divided into two parts, such as the loading platform with the carriage and the front lift. Due to the different configuration of the loading platform when operating in different modes, calculation was made for two modes: a staff and for the "catcher" mode, in case of interruption of load-bearing rope.



The computational model of the console single-column lift carrying capacity of 1.5 t

The model of a cargo platform with a carriage for working in a regular mode
Model of cargo platform with carriage for operation in the "catcher" mode
Rod model of the lower section of the cantilever elevator along with a list of used sections
The upper part of the hoist with fixed load bearing ropes and an installed cargo hoist
Rod model of the entire elevator stand

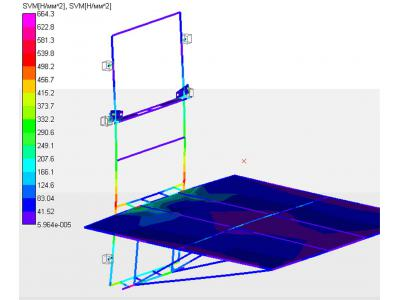

Map of maximum equivalent (for Mezis) stresses of the structure of the cargo platform with the carriage in normal mode
Map of total movements in elements of a cargo platform with a carriage in nominal mode
The form of loss of stability of the structure of the loading platform with the carriage in the nominal mode
A map of equivalent stresses arising in structural elements under the action of a triple load on it, in the "catcher" mode
Section of the wing of the catcher with a hook that falls into the hole in the channel, in the "catcher" mode

To evaluate the effect on shock strut design simulating a sudden brake platform with the carriage when the safety gear is triggered, to structural racks reactions were applied to the loading platform supports obtained from the action of the triple load arising during braking.

To simulate the shock loads generated by the action of the safety gear, conducted dynamic analysis (calculation of forced vibrations) that examined the behavior of the rack during the action of shock loads.

Dependence of the level of equivalent loaded in the most loaded rod on time
Form of loss of stability of the upper part of the structure of the elevator
Dynamic picture of the behavior of the structure of the elevator stand under forced oscillations
Rod model of the frame structure of the cargo platform of a two-post lift with a carrying capacity of 2.2 tons

Conclusion :  As the level of stresses arising in elements of construction cantilever rack lift when operating in  normal mode , and the coefficient of the stability margin, the design satisfies the specified requirements, and thus can be realized.

When triggered, the safety device  in the rack there are significant lift on the magnitude of the voltage.

Other computational models of slow lifting devices.

Rod model frame structures of the loading platform for different models of the lifting device.

A rod model of the structure of a skeleton of a cargo platform of a mine hoisting capacity 1.0 t
The rod model of the structure of the skeleton of the cargo platform of a mine hoisting capacity of 2,0 t
A rod model of the structure of a skeleton of a cargo platform of a mine hoisting capacity of 3.0 tons
Map of maximum equivalent stresses of a cargo platform of a two-post lift with a carrying capacity of 2.2 tons
Map of the maximum equivalent stresses of the cargo platform of a mine hoist of 2,0 t capacity
Map of the maximum equivalent stresses of the cargo platform of a mine hoist of 2,0 t capacity
Map of the maximum equivalent stresses of the cargo platform of a mine hoist of 3,0 t capacity
Appearance of the rod model of the rack of a two- post lift with a carrying capacity of 2.2 tons
Appearance rod model racks mine hoist lifting capacity of 1.0 t
Appearance rod model racks mine hoist lifting capacity of 2.0 tons
Appearance rod model racks mine hoist lifting capacity of 3.0 t
A map of equivalent stresses of the top, most loaded, part of the rack of a two-post lift with a carrying capacity of 2.2 tons
A map of equivalent stresses of the top, most loaded, part of the mine hoist rack with a carrying capacity of 1.0 t
A map of equivalent stresses of the top, most loaded, part of the mine hoist rack with a carrying capacity of 2.0 t
The form of loss of stability of a two-post lift with a carrying capacity of 2.2 tons
Form of loss of stability of a mine hoist with a carrying capacity of 1.0 t
Form of loss of stability of a mine hoist with a carrying capacity of 2.0 t
Form of loss of stability of a mine hoist with a carrying capacity of 3,0 t
