PROJECT CIVIL KM KMD DESIGN Tower doppler weather radar

Tower doppler weather radar (DMRL)

Working documentation brand KMD all metal tower DMRL was developed based on the brand of KM drawings.

Metall frame towers are engineering structure, consisting of one zone.

The dimensions of the construction:

- in plan - 6x6 m;

- height - 30.5 m.

design Weight - 44 m.

Geometric immutability frame in the transverse and longitudinal directions is ensured columns, the vertical and horizontal linkages.

Class structures of responsibility - II.

Steels bearing metal elements taken from the type of construction, with the design temperature - -42 ° C.

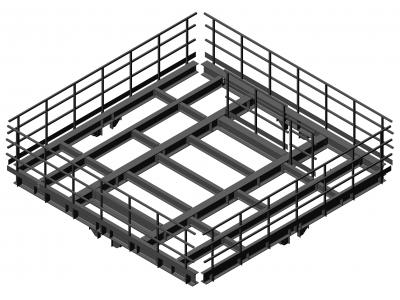

General view in 3D
General view in 3D
General view in 3D
General view in 3D

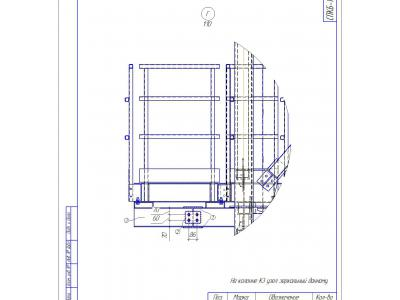

General view in 2D
